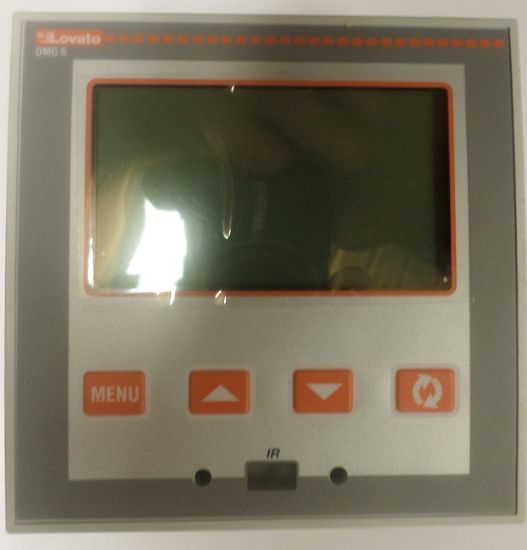

Digital Multimeters DMG 600
with high accuracy on the wide LCD display, which allow to control energy distribution networks.
_ Easy and intuitive menu navigation
_ LCD display with text in 5 languages
_ Expandability with EXP... modules
_ High measurement accuracy
_ Display of voltage and current harmonics up to the 15th order
_ Wide range for power supply, measurements and temperature
_ Suitable for LV, MV and HV electric systems and installations Operational characteristics
– Auxiliary supply voltage range: 100-440VAC /120-250VDC
– Voltage measurement range: 50-720VAC
– Usage in medium and high-voltage systems with voltage transformers
– Rated input current: 1A or 5A
– Frequency measurement range: 45-66Hz
– True RMS measurements: for voltage and current
– Measurement accuracy:
• Voltage: ±0.5% (50-720VAC)
• Current: ±0.5% (0.1-1.1In)
• Power: ±1% f.s.
• Frequency: ±0.05%
• Active energy: Classe 1 (IEC/EN 62053-22)
• Reactive energy: Class 2 (IEC/EN 62053-23)
– Non-volatile memory for data storage
– Communication protocol Modbus-RTU, ASCII and TCP
– Compatible with software and APP
– Flush-mount housing 96x96mm
– IEC degree of protection: IP54 on front; IP20 at terminals.
Certifications and compliance
Certifications obtained: EAC, cULus.
Compliant with standards: IEC/EN 61010-1,
IEC/EN 61000-6-2, IEC/EN 61000-6-3,
UL 61010-1, CSA C22-2 n°61010-1.
