Hyundai Diesel Generator - 34kW (Three Phase)
Industrial 34kW three-phase diesel generator perfect for commercial and light industrial backup power. Features robust Hyundai diesel engine.

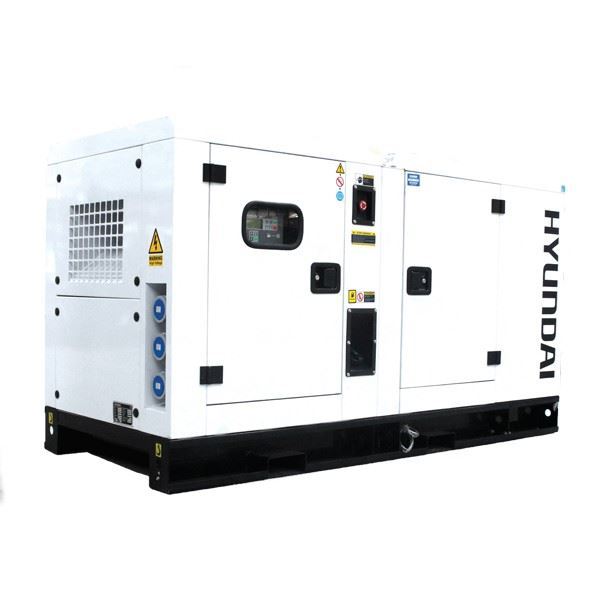

Hyundai DHY34KSE 1500rpm 34kVA Three Phase Diesel Generator
The DHY34KSE is fitted with a 4 cylinder water cooled slow running 1500rpm engine, this machine is built to give you years of reliable service. The electronic control panel allows users to monitor vital functions, and can be fitted with a sim card to provide remote start and stop functionality.
The alternator is fitted with an Automatic Voltage Regulator providing smooth power for your equipment, whether in prime or standby mode.
The generator is fitted as standard with a large fuel tank. For increased run time users, can specify three way fuel valves, enabling an external fuel tank to be utilised.
For detailed technical information on the Hyundai DHY34KSE 1500rpm 34kVA Diesel Generator, please click on the Specifications tab above.
Specifications
|
Dimensions (mm)
|
Length 2200 x Width 950 x Height 1240
|
|
Rated Power (kW/kVA)
|
25 / 31
|
|
MAX. Power (kW/kVA)
|
28 / 34
|
|
Frequency
|
50
|
|
Voltage(s)
|
400
|
|
Controller
|
IL-NT MRS 10
|
|
ATS Port
|
INCLUDED
|
|
Battery (Ah)
|
1x12v-60Ah
|
|
Fuel Capacity
|
93
|
|
Cooling Fluid Volume (L)
|
10
|
|
Fuel Consumption (l/h 50/100% loading)
|
5.2 / 9.3
|
|
Engine
|
HY4102
|
|
Power Output (kW/1500rpm)
|
33
|
|
Rotate Speed
|
1500 RPM
|
|
Speed Regulation
|
33
|
|
Displacement (cc)
|
MECHANICAL
|
|
Alternator
|
AVR
|
|
Power Factor (Cosφ)
|
0.8
|
|
Low Oil Pressure
|
Yes
|
|
Block On Startup
|
Yes
|
|
Low Battery
|
Yes
|
|
Low Oil Level
|
Yes
|
|
Low Running On Engine
|
Yes
|
|
Emergency Stop
|
Yes
|
|
N.G. (kg.)
|
890
|
|
Noise @ 1m
|
92
|
|
Noise @ 7m
|
65
|
|
Capacity (units/container)
|
6/20GP;12/40GP;12/HQ
|
