Hyundai Diesel Generator - 9kW (Single Phase)
Reliable 9kW single-phase diesel generator perfect for small businesses and residential backup power. Features quiet operation and fuel-efficient design for extended runtime.
Hyundai DHY9KSEm 1500rpm 9kVA Single Phase Diesel Generator
This is our entry level generator, with a low revving, water cooled diesel generator. Ideally suited for standby use in domestic and small offices, this unit can be fitted with an automatic transfer switch to cover the possibility of power cuts.
The generator has a built in diesel tank, and can run on red diesel for economy.
For detailed technical information on the Hyundai DHY9KSEm 1500rpm 9kVA Single Phase Diesel Generator, please click on the Specifications tab above.
Specifications
|
Dimensions (mm)
|
Length 1500 x Width 760 x Height 1070
|
|
Max Power Single Phase (kW/kVA)
|
9
|
|
Rated Power (kW/kVA)
|
8.0kw/8.0kva
|
|
MAX. Power (kW/kVA)
|
8.8kw/8.8kva
|
|
Frequency
|
50
|
|
Voltage(s)
|
115, 230
|
|
Controller
|

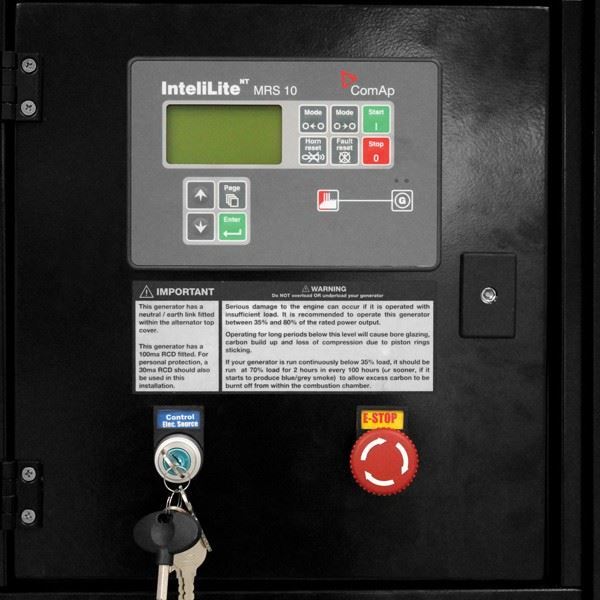

IL-NT MRS 10
|
|
ATS Port
|
Included
|
|
Battery (Ah)
|
1X12V - 36Ah
|
|
Fuel Capacity
|
42
|
|
Cooling Fluid Volume (L)
|
10
|
|
Fuel Consumption (l/h 50/100% loading)
|
1.8 / 3.5
|
|
Engine
|
HY380
|
|
Power Output (kW/1500rpm)
|
11
|
|
Rotate Speed
|
1500rpm
|
|
Speed Regulation
|
Mechanical
|
|
Displacement (cc)
|
1357
|
|
Oil Capacity (L)
|
10
|
|
Alternator
|
AVR
|
|
Power Factor (Cosφ)
|
1
|
|
Voltage Regulation
|
AVR / BRUSHLESS
|
|
Low Oil Pressure
|
Yes
|
|
Block On Startup
|
Yes
|
|
Low Battery
|
Yes
|
|
Low Oil Level
|
Yes
|
|
Low Running On Engine
|
Yes
|
|
Emergency Stop
|
Yes
|
|
N.G. (kg.)
|
460
|
|
Noise @ 1m
|
92
|
|
Noise @ 7m
|
65
|
