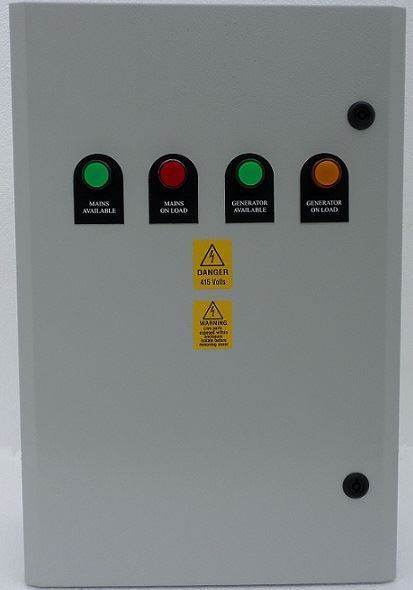

Mains - Mains 30 Amp ABB 3 Phase N

Mains to Mains Automatic Transfer Switch.

Automatic switching between Primary Mains & Secondary Mains

3 Phase + Neutral 4 Pole (400V) Automatic Transfer Switch Also Known As an ATS Panel.

A phase failure relay is used for Mains / Primary voltage monitoring and offers Phase Failure & phase sequence Protection.

The Automatic Transfer Switch Control Panel has two-time control relays for on load delay. 1^st Timer normally set to 10s and is used to control the Primary Mains on load / Restoration period, this controls the period the Primary Mains supply has to be healthy before engaging the Mains contactor. The 2^nd Timer normally set for 15s controls the Secondary Mains contactor, On failure of the Primary / Mains supply,  The Secondary Mains 2^nd timer will initiate. The Automatic Transfer Switch will monitor the Primary / Mains, as soon as the mains is restored it will drop the Secondary Mains contactor and initiates the 1^st timer sequence, then automatically switches back to the Primary Mains supply,

Standard Full Spec 3P+N Automatic Transfer Switch

2 x 4 Pole AC1 Rated (690 V) 40 °C Contactors, Electrically & Mechanically Interlocked “break before make”

1 x Phase Failure Relay for mains monitoring.

1 x Primary & Secondary Delay On Load Timers.

1 x 240v Ac 10 Amp Auxiliary Supply From Primary Mains Supply L1

1 x 240v Ac 10 Amp Auxiliary Supply From Secondary Mains Supply L1

1 X Set Rated Fuses for control circuit

1 x Set of Primary Available Volt Free Contact N/c ( For BMS )

1 x Set of Primary On Load Volt Free Contact N/o ( For BMS )

1 x Set of Secondary On Load Volt Free Contact N/o ( For BMS )

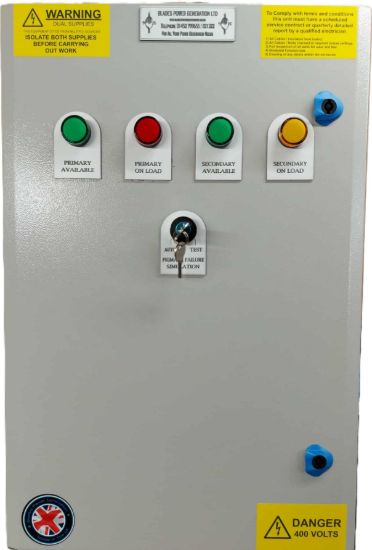

Mains Failure Simulation Switch ( Auto Test ) (Option)

This is a Mains Simulation Test Switch that you can simulate a mains failure from the switch on the panel door.

LED Indication

Primary Available (GREEN), Primary On Load (RED)

Secondary Available (GREEN), Secondary On Load (AMBER)

ABB - 30 Amp Enclosure:

All Mounted into a 400 High 400 Wide 200 Deep All Steel Enclosure, with  Removable Gland Plate.

IP65 Rated RAL7035 With Lockable Door, 1 Key Supplied & Wall Mounting Brackets

Cable entry standard is arranged for bottom entry with a direct connection into the contactors

Specification to EN 62208, EN 60529, IK10, EN 61439-1-2.

Assembled in the UK by Blades Power Generation Limited using parts conforming to EN60529, EN60947.

Provided with a 12-month warranty ( extended warranty available)
