Deep Sea ATS333

Previous productDeep Sea - Auto Start DSE7110

Next productDeep Sea ATS335

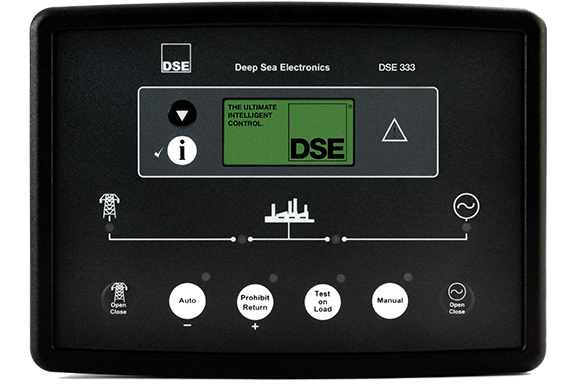

The DSE333 is an Automatic Transfer Switch controller for genset and other applications. The module will monitor the voltage and frequency of the incoming AC mains (utility) supply and in the event of a failure, will issue a start command to the generator control system. Once the generator is available and producing an output within limits, the DSE333 will control the transfer device and switch the load from the mains (utility) to the generating set.

Manufacturer part number: DSE333

Manufacturer: Deep Sea

Call for pricing

Qty:

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT
292 mA at 12 V, 167 mA at 24 V

MAXIMUM STANDBY CURRENT
101 mA at 12 V, 66 mA at 24 V
MAINS (UTILITY)

VOLTAGE RANGE
15 V to 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

OUTPUTS

OUTPUT A (MAINS/UTILITY)
Normally closed relay output
8 A AC at 250 V AC

OUTPUT B (GENERATOR)
Normally open volt-free output
8 A at 250 V AC

OUTPUT C (START)
Normally closed volt-free output
8 A DC at 35 V DC (UL Rating 30 V)

OUTPUT D (CHANGEOVER)
Normally open volt-free output
8 A at 250 V AC

OUTPUT E
Normally open volt-free output
8 A at 250 V AC

GENERATOR

VOLTAGE RANGE
15 V to 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK UP

VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)

DIMENSIONS

OVERALL
215 mm x 158 mm x 42 mm
8.5” x 6.2” x 1.6”

PANEL CUT-OUT
182 mm x 137 mm
7.2” x 5.4”

MAXIMUM PANEL THICKNESS
8 mm
0.3”

OPERATING TEMPERATURE RANGE
-30°C to +70°C

STORAGE TEMPERATURE RANGE
-40°C to +80°C

Overview
Specifications
Contact Us

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

MAXIMUM OPERATING CURRENT
292 mA at 12 V, 167 mA at 24 V

MAXIMUM STANDBY CURRENT
101 mA at 12 V, 66 mA at 24 V
MAINS (UTILITY)

VOLTAGE RANGE
15 V to 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

OUTPUTS

OUTPUT A (MAINS/UTILITY)
Normally closed relay output
8 A AC at 250 V AC

OUTPUT B (GENERATOR)
Normally open volt-free output
8 A at 250 V AC

OUTPUT C (START)
Normally closed volt-free output
8 A DC at 35 V DC (UL Rating 30 V)

OUTPUT D (CHANGEOVER)
Normally open volt-free output
8 A at 250 V AC

OUTPUT E
Normally open volt-free output
8 A at 250 V AC

GENERATOR

VOLTAGE RANGE
15 V to 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK UP

VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)

DIMENSIONS

OVERALL
215 mm x 158 mm x 42 mm
8.5” x 6.2” x 1.6”

PANEL CUT-OUT
182 mm x 137 mm
7.2” x 5.4”

MAXIMUM PANEL THICKNESS
8 mm
0.3”

OPERATING TEMPERATURE RANGE
-30°C to +70°C

STORAGE TEMPERATURE RANGE
-40°C to +80°C
